Cable Trays

Delta manufactures cable trays that are generally used for minimal heat generating electrical or telecommunication applications. It is made from best grade HR/CR Steel and Aluminum and in-house surface treatment plants for powder coating and various other coatings.

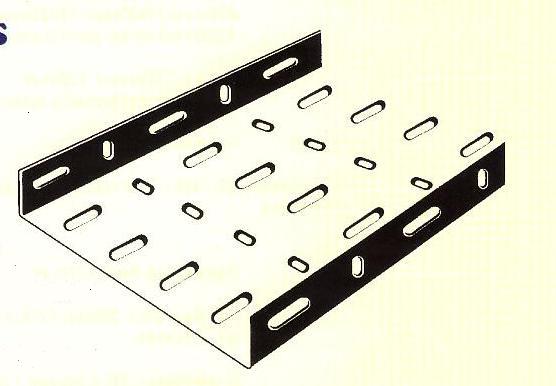

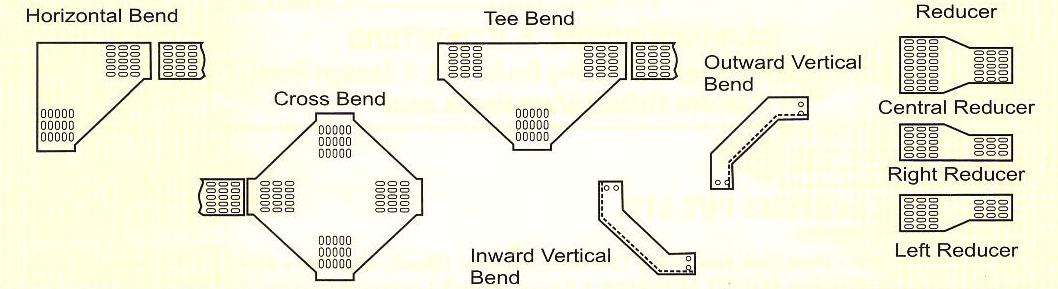

PERFORATED TYPE CABLE TRAY

Material :- MS and Pregalvanized
Finish :- Hot dip Galvanizing/Powder coated/Painted
Standard Width: 50/100/150/200/300/450/500/600 mm
Standard Height :- 25/40/50/75/100 mm
Standard Thickness :- 1.8 mm/2.0mm
Support :- Threaded Rod Dia 8/10/12 mm
Angles : 25 x25 / 40 x 40 mm
Flat Patti
Cover Ht :- 25mm with 1.6 mm thickness

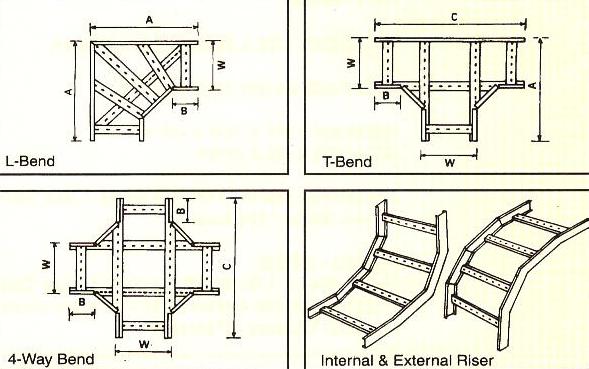

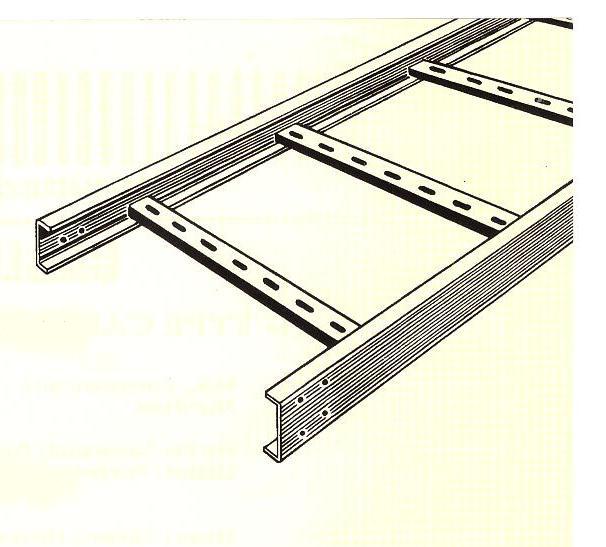

LADDER TYPE CABLE TRAY

Material :- MS and Pre galvanized
Finish :- Hot dip Galvanizing/Powder coated/Painted
Standard Width: 100/150/200/300/450/500/600 mm
Standard Height :- 50/75/100 mm
Standard Thickness :- 1.8 mm/2.0mm
Support :- Threaded Rod Dia 8/10/12 mm
Angles : 25 x25 / 40 x 40 mm
Flat Patti
Cover Ht :- 25mm with 1.6 mm thickness
